Specifications

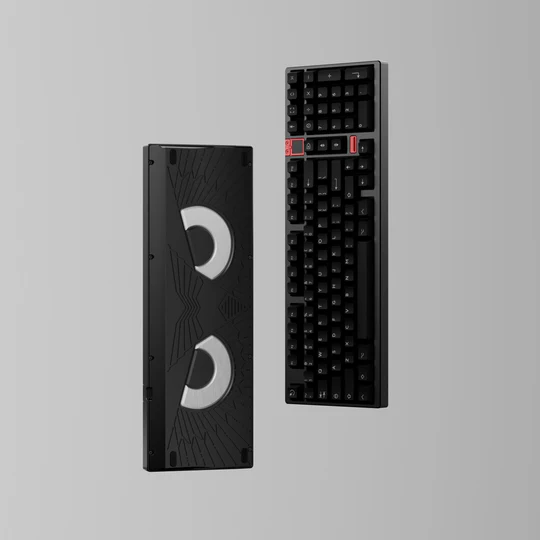

Layout: 1800 Layout

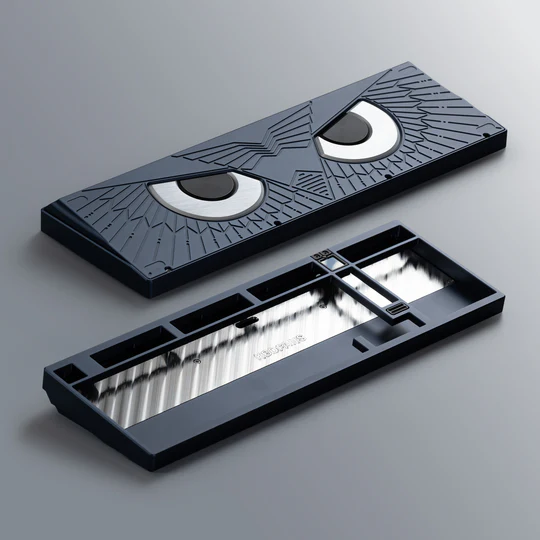

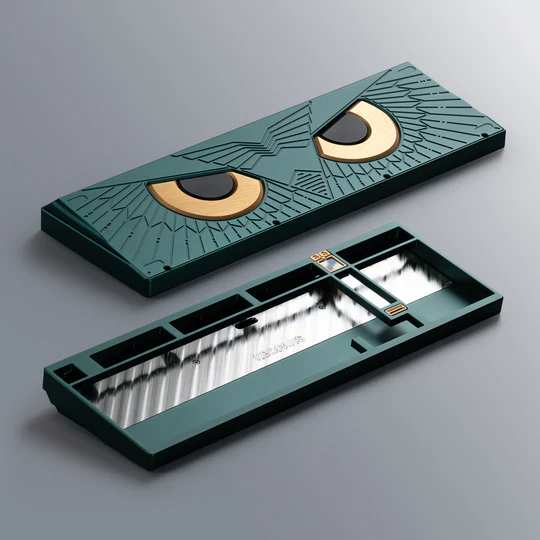

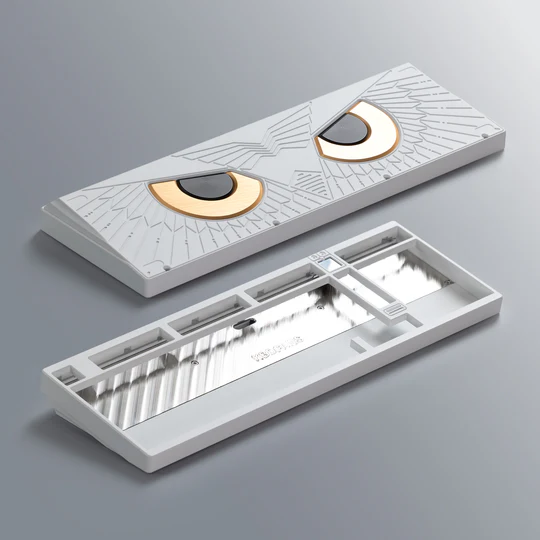

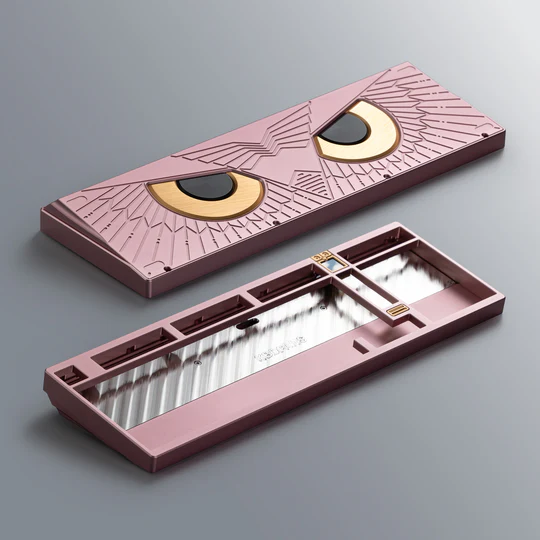

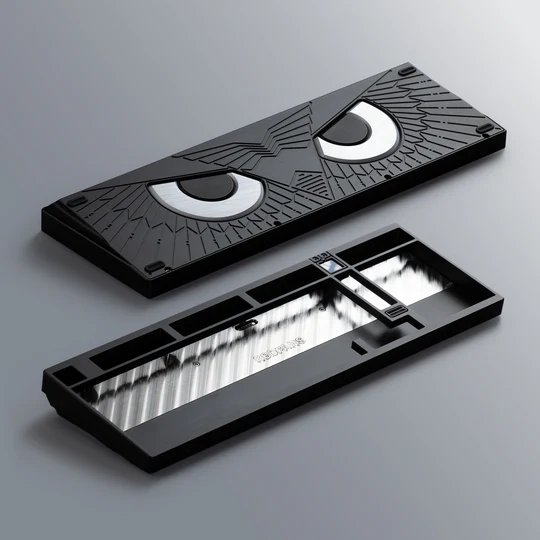

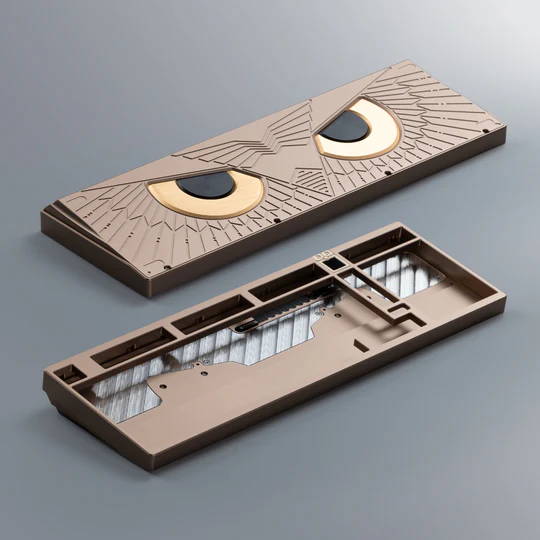

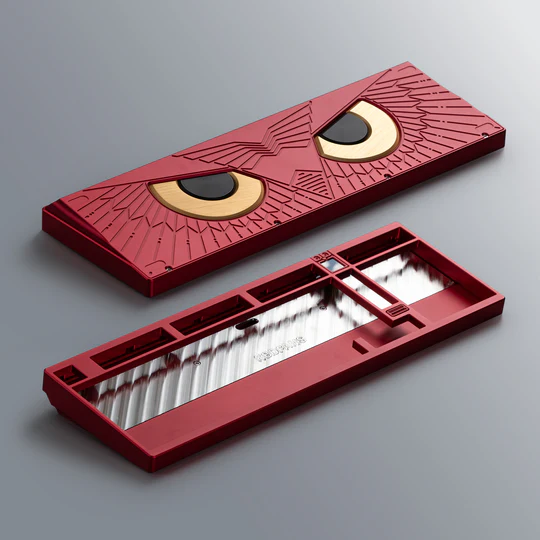

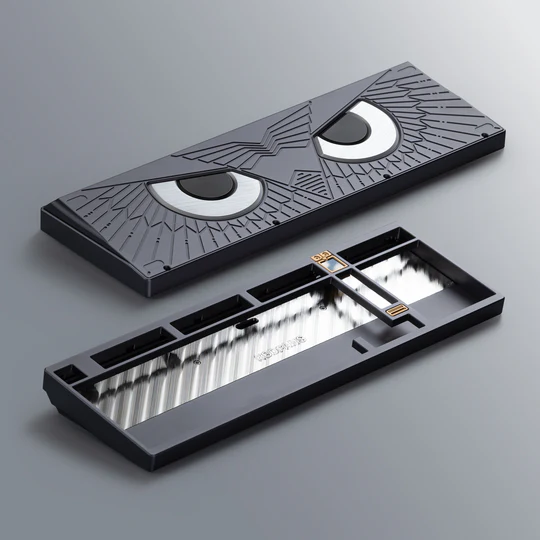

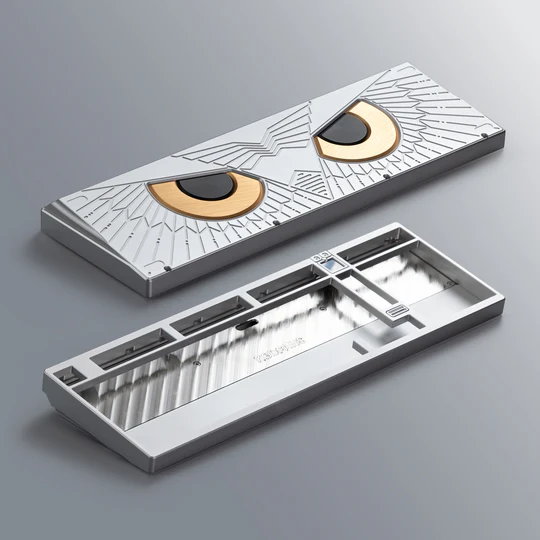

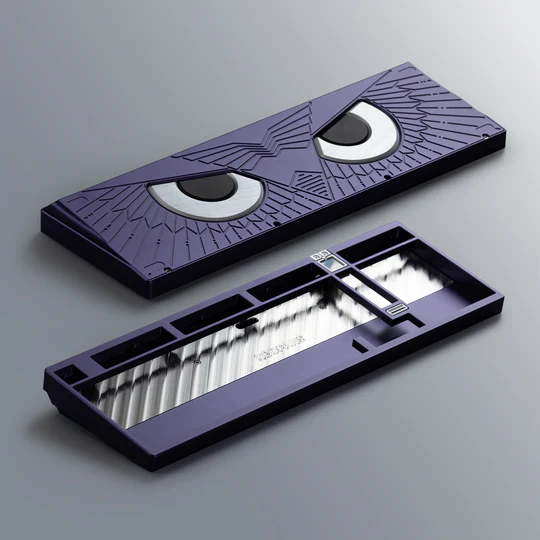

Case material: Aluminum (anodized/e-coating)

Mounting style: Top Mount/PCB Silicone Gasket

PCB: 1.6mm solder/hotswap PCB, non flex-cut, USB-C interface, VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator

Plate: Alu/FR4/PC/Carbon fiber Plate

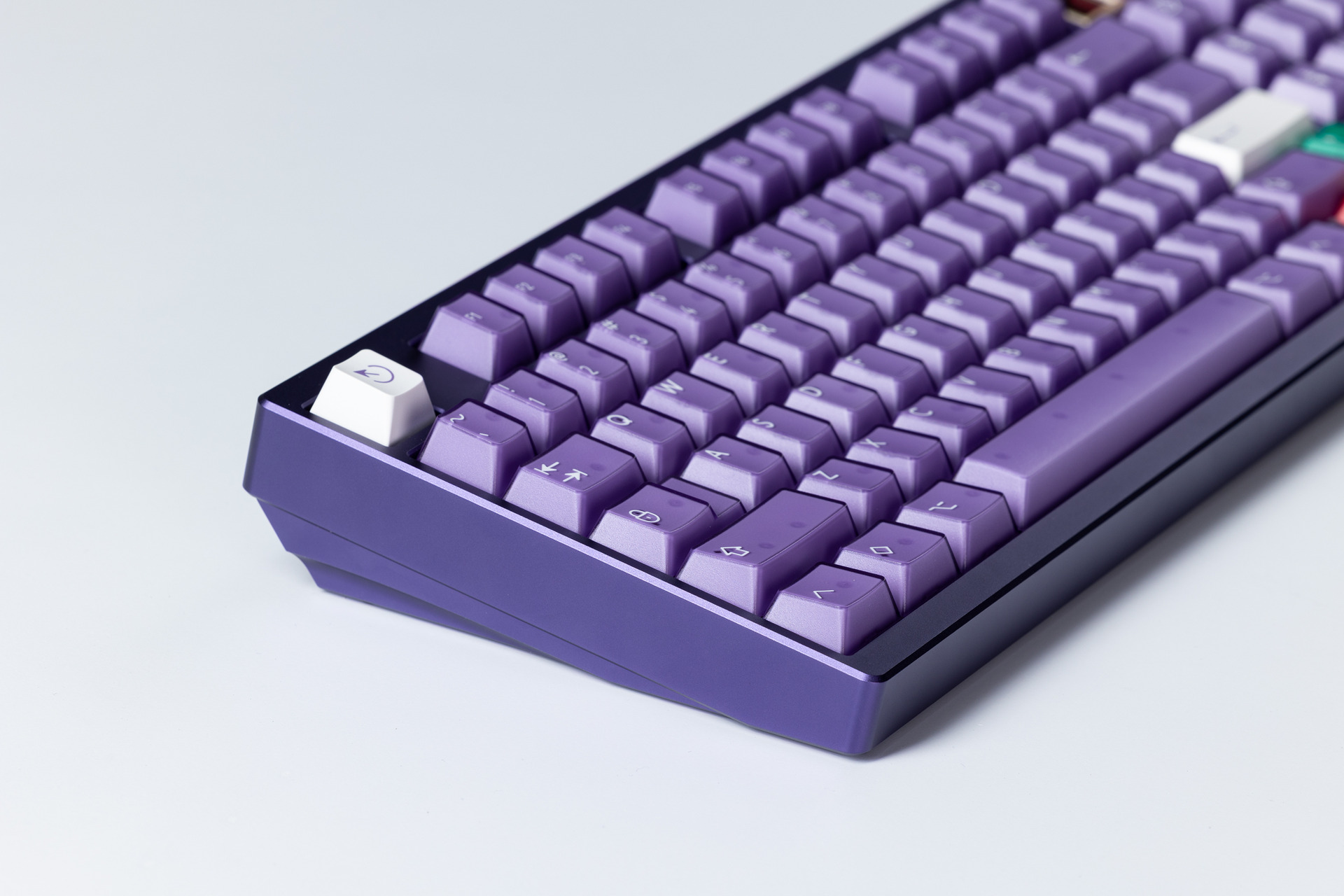

Typing angle: 9 degree

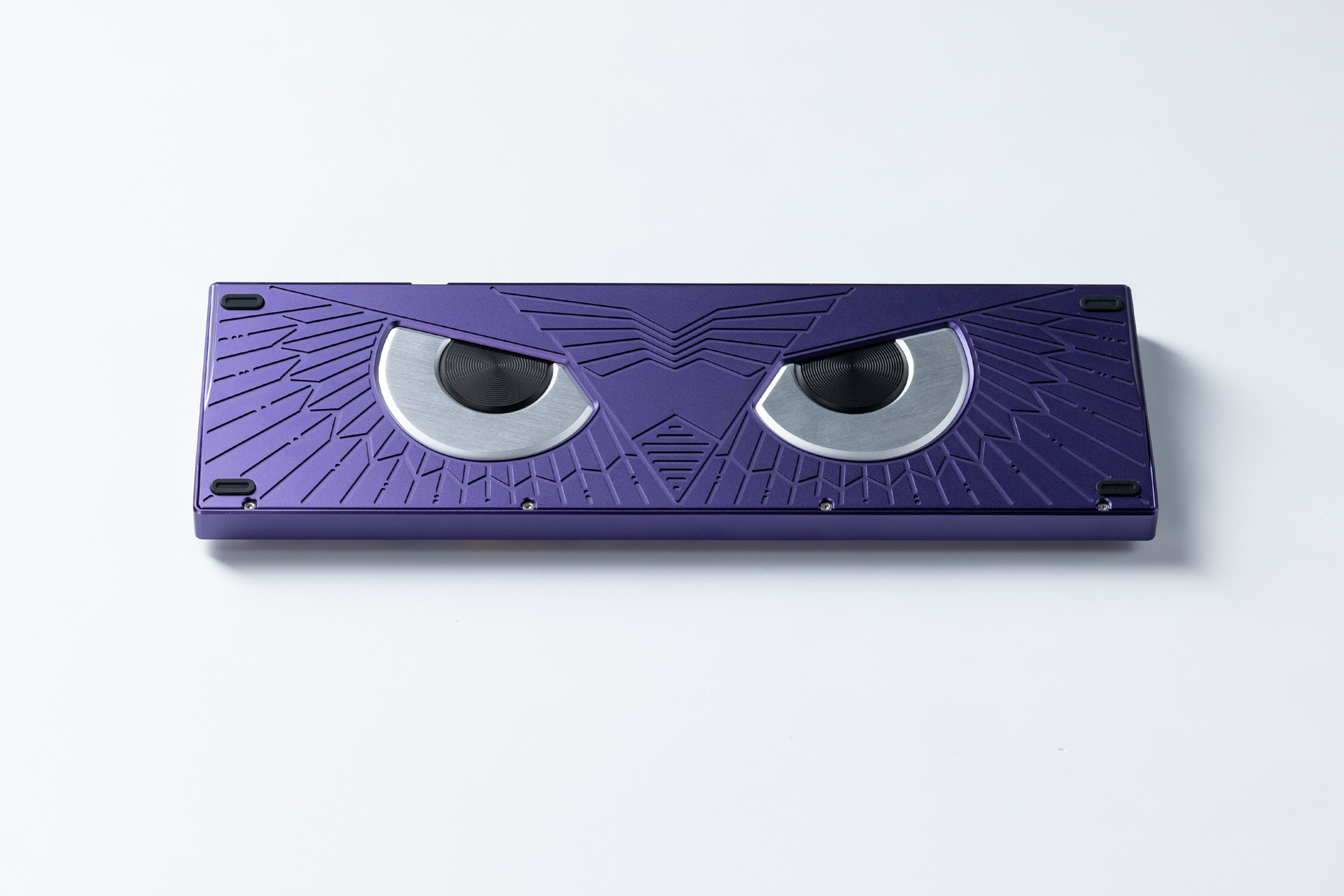

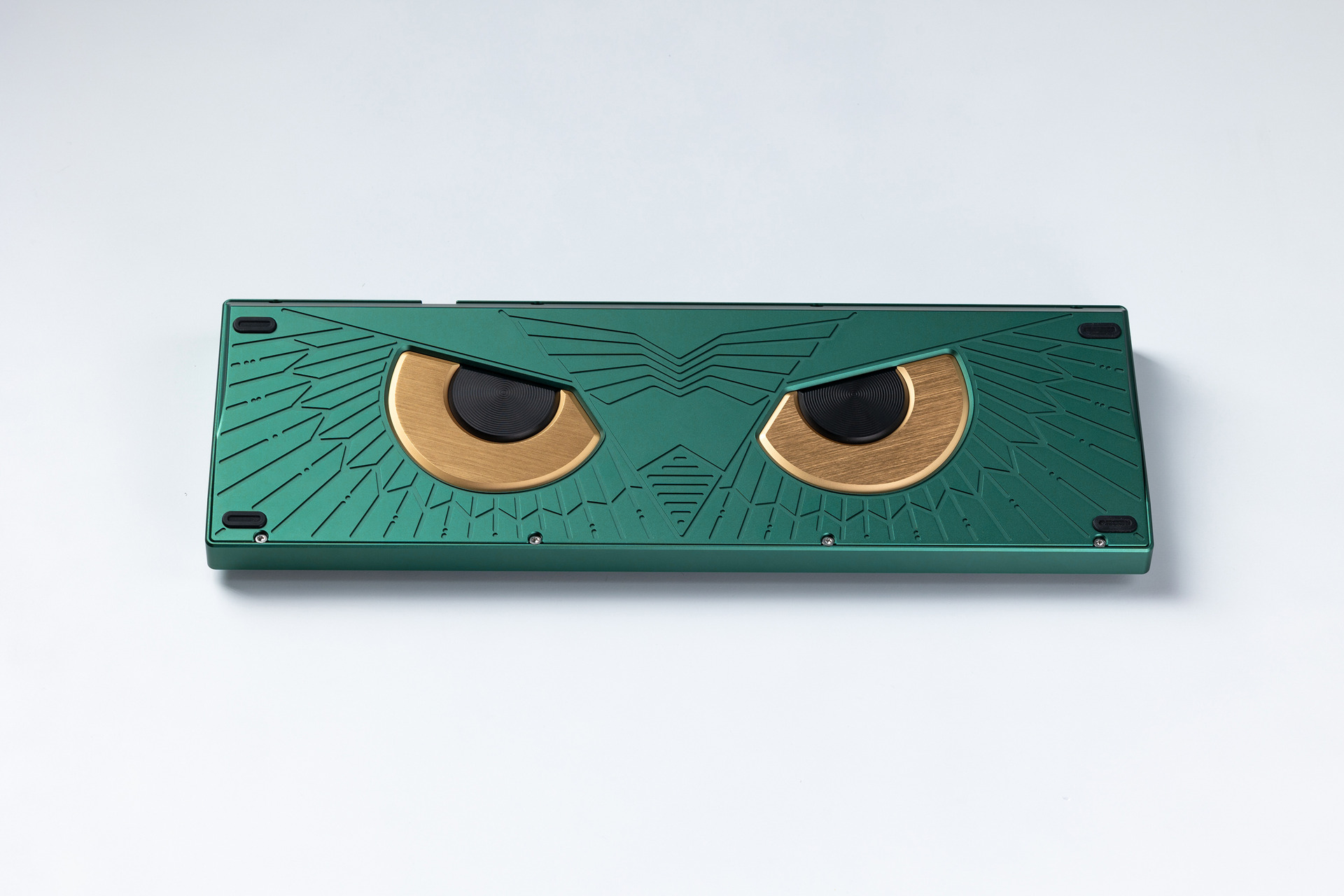

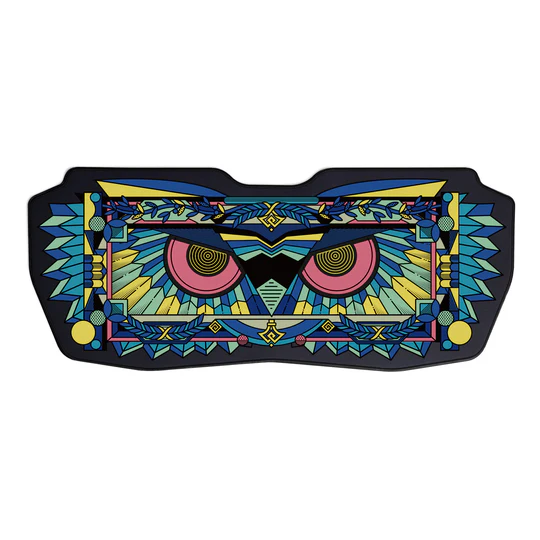

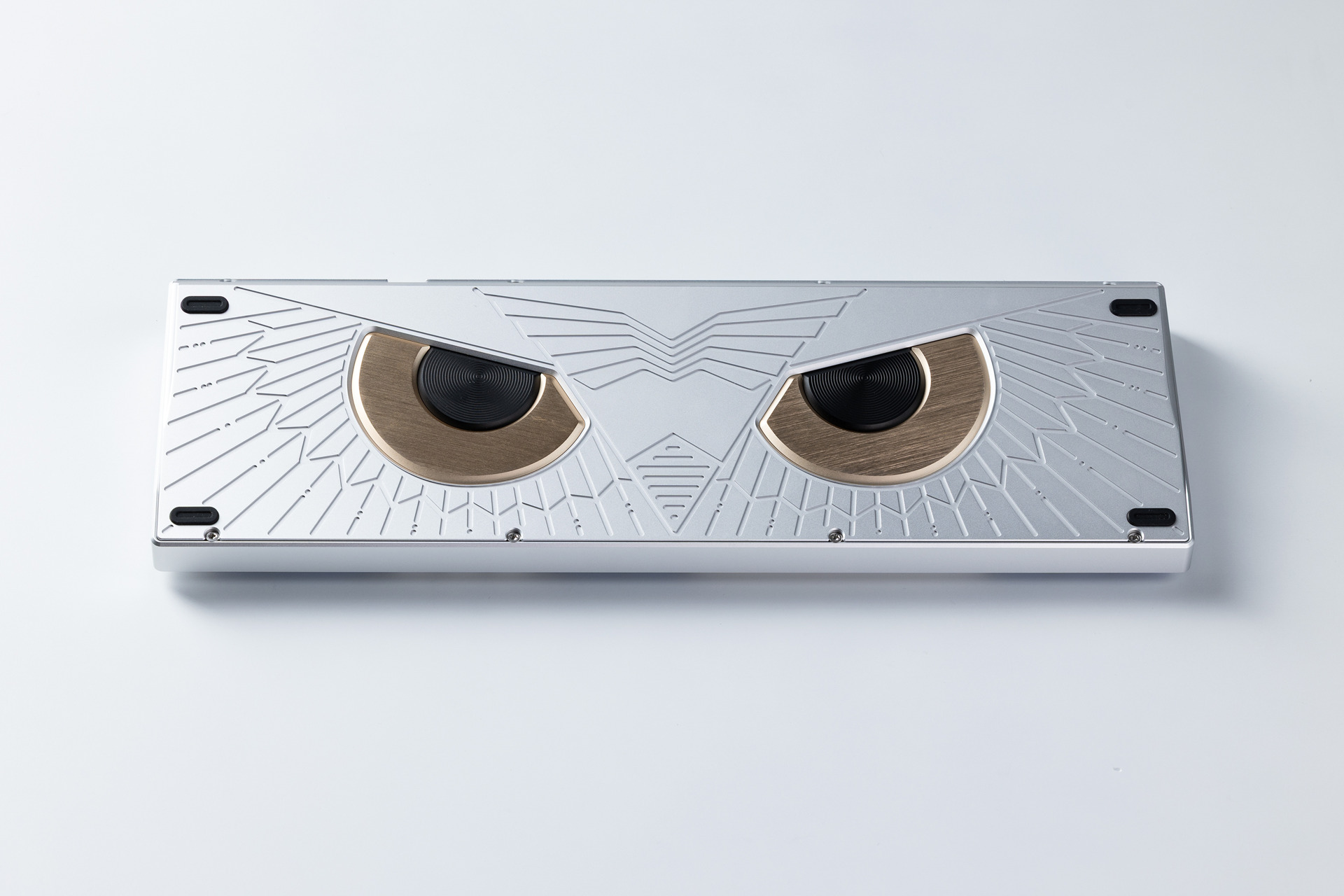

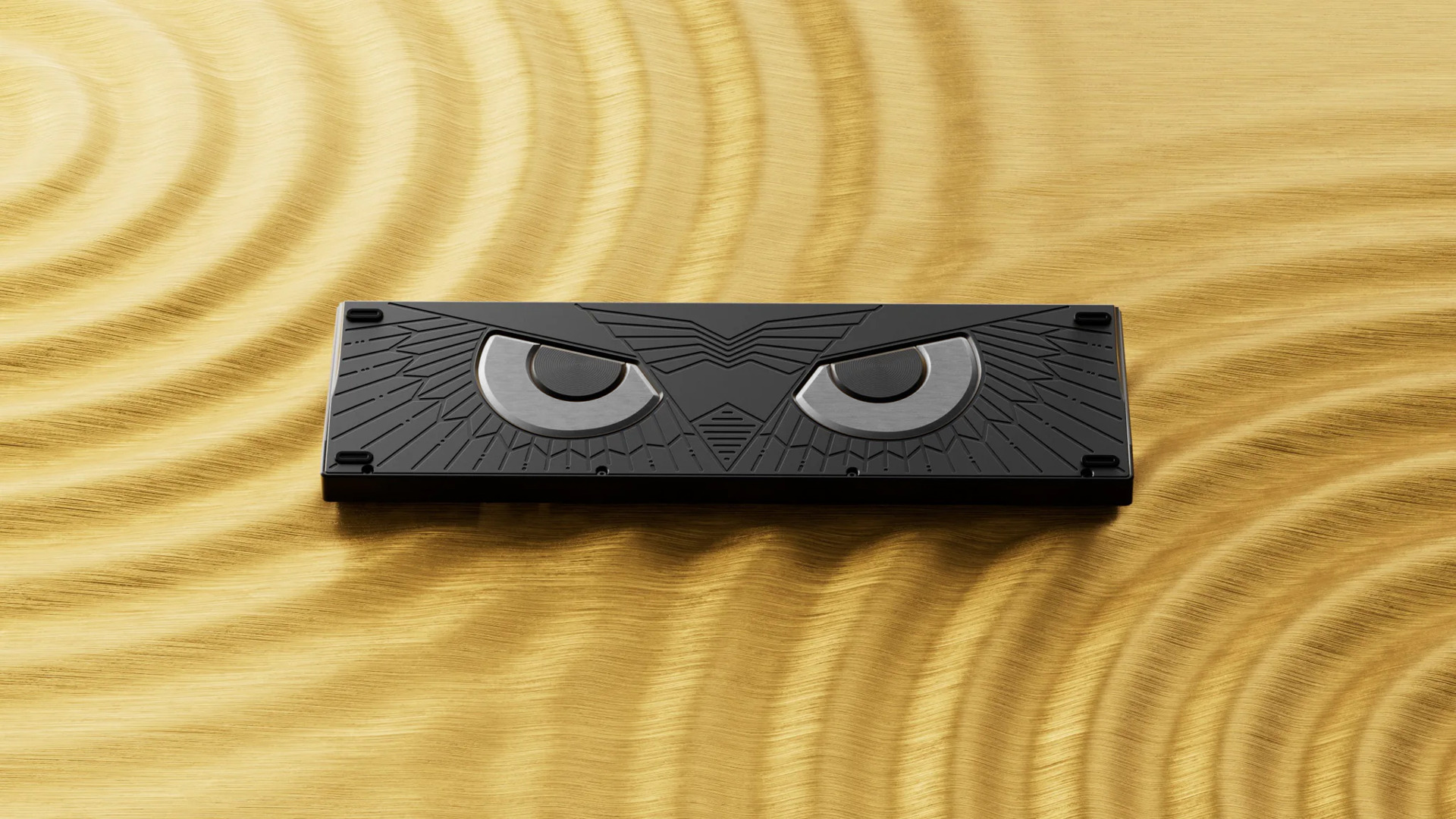

Cover plate material options: Stainless Steel / Brass / Carbon Fiber

Weight after built:
≈2.5kg with Carbon Fiber cover plate
≈3kg with Stainless Steel cover plate

Designer: Wei

Plate file

Athena 1800 user manual

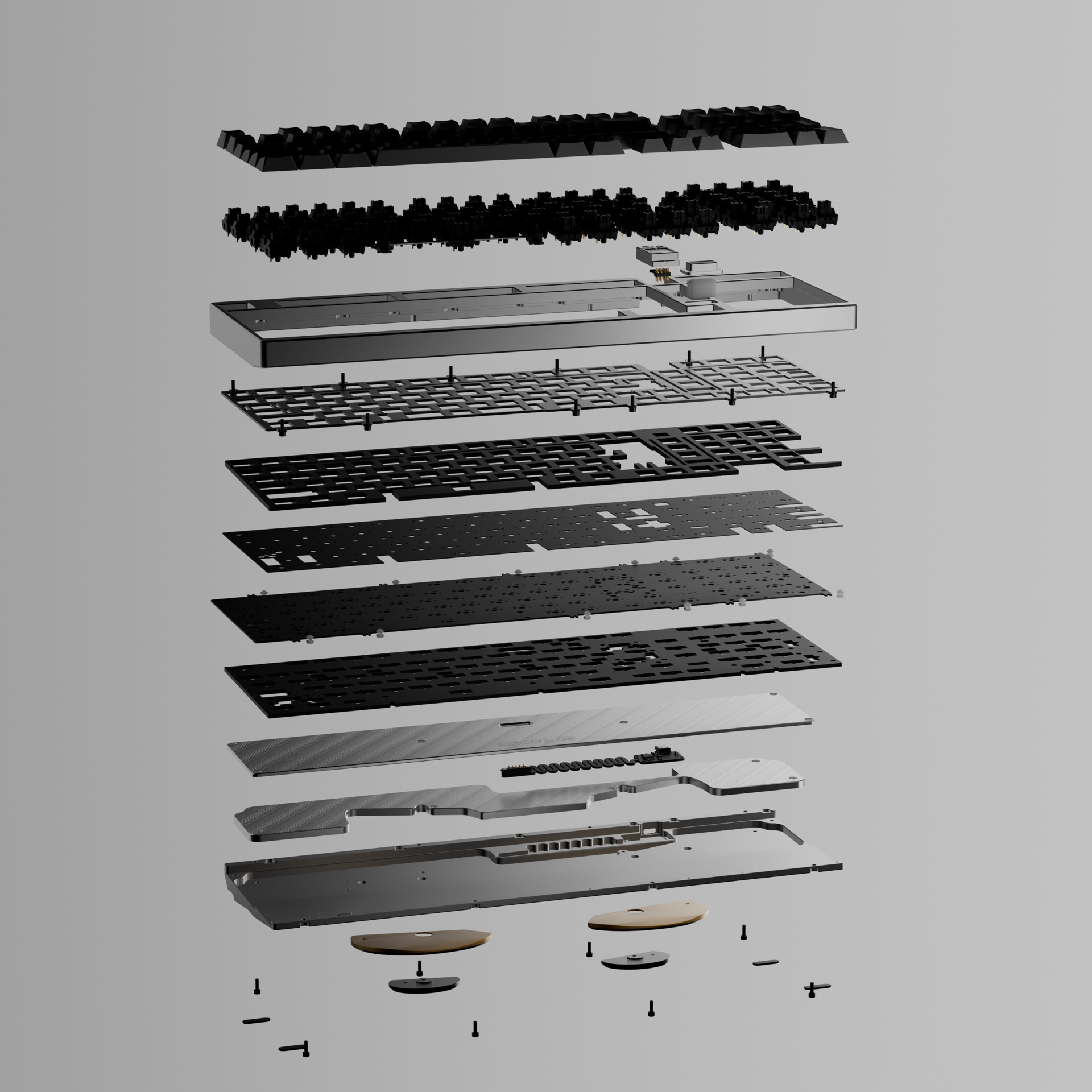

What's Included

Top and bottom case x1
Stainless steel weight bar x1
Silicone gasket x1 set
Rubber feet x1 set
Solder / hotswap PCB x1
Daughterboard x1
Cover plate x1
Foam kit x1
Plate x1
LCD screen x1

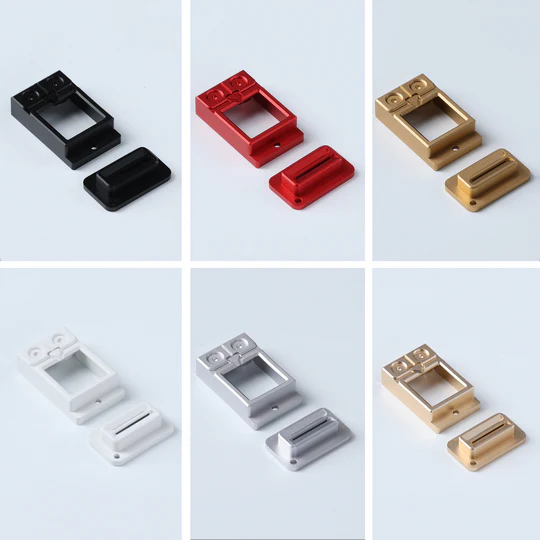

Bezel x1
RGB grille x1
Aluminum pupil x1 set
Aluminum iris x1 set
Screws x1 set
Force break tape

Update

Pre-order will ship around October, 2025 (07/30/2025)
In-stock sale date: July 30th
In production (06/13/2025)

Athena SS PVD Iris update

Pre-order date: Oct 14th - Oct 28th
Estimated shipping date: Around the end of Jan, 2026

Firmware

ydkb_kbdfans_athena1800_via_v3.json (updated on 08/22/2025)

kbdfans_athena1800_vial_250822_DP8M_1.uf2 (updated on 08/22/2025)

Flash manual

Athena 1800 GIF Customization Guide: For custom GIFs, you can convert your image or animation into the .uf2 format on this web: GIF to UF2 for Athena1800
It only supports 128x128 pixel GIFs.
For GIFs used for "Typing" and "CapsLock" (presumably referring to keyboard indicators), the frame count should be less than 31 frames.
For other GIFs, the frame count should be less than 63 frames.

Athena 1800 firmware update (Aug 22, 2025)

Upgraded to dual-core firmware for better performance, including improved button response speed and higher GIF frame rates.
Added Key Debounce settings. If buttons register multiple presses, try setting Key Debounce to "normal" or "slow" in the Layout settings.
Added a screen on/off switch. Left and right Shift+O
Fixed an issue where the screen sometimes didn't light up properly when the computer was turned on.
The keyboard now remembers the last used GIF after switching, making it load directly the next time the keyboard is powered on

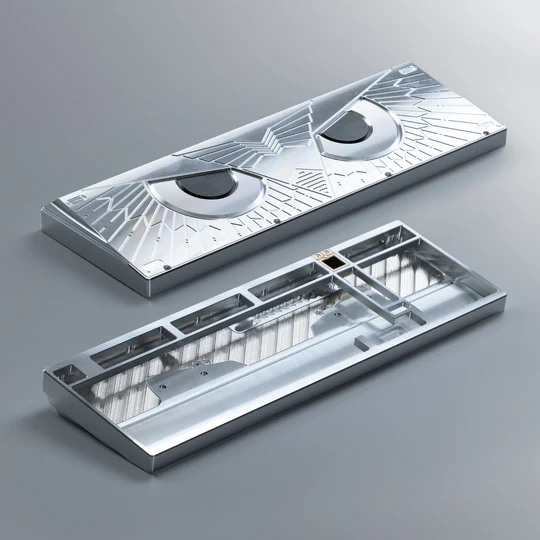

Disclaimer: Characteristics of RAW Case

It is important for buyers to understand that RAW case will naturally present with slight cosmetic imperfections. These commonly include fine scratches, minor indentations, and subtle blemishes or surface inconsistencies. Such variations are typical for this type of finish and are not considered manufacturing defects. Therefore, these characteristics will not be accepted as a basis for warranty claims, returns, or exchanges. By purchasing this product, you acknowledge and accept these inherent qualities.
